Scape X® Module

sxst-001

Scape X® Stickers | 1 Foil Sheet IDs 1-24

<div class="techspecs">Scape X® Stickers | 1 Foil Sheet IDs 1-2424 transparent stickers » Price Scale: 1 - 9 | 10 - 99 | 100 - ... » For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » 24 foil stickers, 1x IDs 1-24 » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 48 mm, h 0,5mm » We are happy to provide an offer for customised Scape X® Objects upon request. Requirements for use without interferences: » Stickers need to be placed flat on the display » Capacitive objects require a ~10 mm insulation layer between sticker and object, we will be happy to advise you! You can find more information on this article at https://www.ias-manuals.com/sxst-001</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Stickers | 1 Foil Sheet IDs 1-24 Article Number: sxst-001 Dimensions Sticker: ø: 48.0 mm Sheet: 34.0x23.5 mm, (LxW) 14.5g Material: PET, print Quantity: 1 sheet with 24 self-adhesive stickers Features TUIO IDs: 1 - 24 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 32" / 43" / 55" / 65" with Scape X® Object Recognition Module </div></div></div>

sxmv-002-38p

Scape X® Magnify Visible | ID 38

<div class="techspecs">Scape X® Magnify Visible | ID 38» For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » black acrylic ring with ID 38 » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 193 mm, h 15 mm ± 0.9 mm » black main body » H 15 mm ± 0.9 mm » Outside ø 193 mm » Inside ø 161 mm You can find more information on this article at https://www.ias-manuals.com/sxmv-002-38p</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Magnify Visible | ID 38 Article Number: sxmv-002-38p Dimensions: Inner ø: 161.0 mm, Outer ø : 193.0 mm, h: 15.0 mm ± 0.9mm Weight: 148 g Material: Acrylic, black Features TUIO ID: 38 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sxmv-002-37p

Scape X® Magnify Visible | ID 37

<div class="techspecs">Scape X® Magnify Visible | ID 37» For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » black acrylic ring with ID 37 » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 193 mm, h 15 mm ± 0,9 mm » black main body » H 15 mm ± 0.9 mm » Outside ø 193 mm » Inside ø 161 mm You can find more information on this article at https://www.ias-manuals.com/sxmv-002-37p</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Magnify Visible | ID 37 Article Number: sxmv-002-37p Dimensions: Inner ø: 161.0 mm, Outer ø : 193.0 mm, h: 15.0 mm ± 0.9mm Weight: 148 g Material: Acrylic, black Features TUIO ID: 37 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sxmi-002-38p

Scape X® Magnify Invisible | ID 38

<div class="techspecs">Scape X® Magnify Invisible | ID 38» For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » transparent acrylic ring with ID 38 » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 193 mm, h 15 mm ± 0.9 mm » transparent main body » H 15 mm ± 0.9 mm » Outside ø 193 mm » Inside ø 161 mm You can find more information on this article at https://www.ias-manuals.com/sxmi-001-38p</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Magnify Invisible | ID 38 Article Number: sxmi-002-38p Dimensions: Inner ø: 161.0 mm, Outer ø : 193.0 mm, h: 15.0 mm ± 0.9mm Weight: 148 g Material: Acrylic, transparent Features TUIO ID: 38 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sxmi-002-37p

Scape X® Magnify Invisible | ID 37

<div class="techspecs">Scape X® Magnify Invisible | ID 37» For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » transparent acrylic ring with ID 37 » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 193 mm, h 15 mm ± 0,9 mm » transparent main body » H 15 mm ± 0.9 mm » Outside ø 193 mm » Inside ø 161 mm You can find more information on this article at https://www.ias-manuals.com/sxmi-001-37p</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Magnify Invisible | ID 37 Article Number: sxmi-002-37p Dimensions: Inner ø: 161.0 mm, Outer ø : 193.0 mm, h: 15.0 mm ± 0.9mm Weight: 148 g Material: Acrylic, transparent Features TUIO ID: 37 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sxti-002_13-24

Scape X® Tags Invisible | IDs 13-24

<div class="techspecs">Scape X® Tags Invisible | IDs 13-2412 transparent acrylic discs in Scape X® packaging » For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » 12 transparent acrylic discs with IDs 13-24 » Can be attached to almost any object » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 48 mm, h 3 mm, ± 0,5 mm » We are happy to provide an offer for customised Scape X® Objects upon request. You can find more information on this article at https://www.ias-manuals.com/sxti-002_13-24</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Tags Invisible | IDs 13-24 Article Number: sxti-002_13-24 Dimensions: ø: 48.0 mm, h: 3 mm ±0.5 mm Weight: 7 g Material: Acrylic, transparent Features TUIO IDs: 13 - 24 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sxti-002_1-12

Scape X® Tags Invisible | IDs 1-12

<div class="techspecs">Scape X® Tags Invisible | IDs 1-1212 transparent acrylic discs in Scape X® packaging » For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » 12 transparent acrylic discs with IDs 1-12 » Can be attached to almost any object » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 48 mm, h 3 mm, ± 0,5 mm » We are happy to provide an offer for customised Scape X® Objects upon request. You can find more information on this article at https://www.ias-manuals.com/sxti-002_1-12</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Tags Invisible | IDs 1-12 Article Number: sxti-002_1-12 Dimensions: ø: 48.0 mm, h: 3 mm ±0.5mm Weight: 7 g Material: Acrylic, transparent Features TUIO IDs: 1 - 12 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sxtv-002_13-24

Scape X® Tags Visible | IDs 13-24

<div class="techspecs">Scape X® Tags Visible | IDs 13-2412 black acrylic discs in Scape X® packaging » For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » 12 black acrylic discs with IDs 13-24 » Can be attached to almost any object » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 48 mm, h 3 mm, ± 0.5 mm » We are happy to provide an offer for customised Scape X® Objects upon request. You can find more information on this article at https://www.ias-manuals.com/sxtv-002_13-24</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Tags Visible | IDs 13-24 Article Number: sxtv-002_13-24 Dimensions: ø: 48.0 mm, h: 3 mm ± 0.5 mm Weight: 7 g Material: Acrylic, black Features TUIO IDs: 1 - 12 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sxtv-002_1-12

Scape X® Tags Visible | IDs 1-12

<div class="techspecs">Scape X® Tags Visible | IDs 1-1212 black acrylic discs in Scape X® packaging » For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » 12 black acrylic discs with IDs 1-12 » Can be attached to almost any object » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 48 mm, h 3 mm, ± 0,5 mm » We are happy to provide an offer for customised Scape X® Objects upon request. You can find more information on this article at https://www.ias-manuals.com/sxtv-002_1-12</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Tags Visible | IDs 1-12 Article Number: sxtv-002_1-12 Dimensions: ø: 48.0 mm, h: 3 mm ±0.5 mm Weight: 7 g Material: Acrylic, black Features TUIO IDs: 1 - 12 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sxsv-002_19-24

Scape X® Shape Visible | IDs 19-24

<div class="techspecs">Scape X® Shape Visible | IDs 19-246 black acrylic objects in Scape X® packaging » For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » 6 black acrylic objects with IDs 19-24 » Can be attached to almost any object » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 74,3 mm, h 20 mm ± 1 mm » We are happy to provide an offer for customised Scape X® Objects upon request. You can find more information on this article at https://www.ias-manuals.com/sxsv-002_19-24</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Shape Visible | IDs 19-24 Article Number: sxsv-002_19-24 Dimensions: ø: 74.3 mm, h: 20 mm ± 1 mm Weight: 103 g Material: Acrylic, black Features TUIO IDs: 19 - 24 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sxsv-002_13-18

Scape X® Shape Visible | IDs 13-18

<div class="techspecs">Scape X® Shape Visible | IDs 13-186 black acrylic objects in Scape X® packaging » For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » 6 black acrylic objects with IDs 13-18 » Can be attached to almost any object » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 74,3 mm, h 20 mm ± 1 mm › We are happy to provide an offer for customised Scape X® Objects upon request. You can find more information on this article at https://www.ias-manuals.com/sxsv-002_13-18</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Shape Visible | IDs 13-18 Article Number: sxsv-002_13-18 Dimensions: ø: 74.3 mm, h: 20 mm ± 1 mm Weight: 103 g Material: Acrylic, black Features TUIO IDs: 13 - 18 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sxsv-002_7-12

Scape X® Shape Visible | IDs 7-12

<div class="techspecs">Scape X® Shape Visible | IDs 7-12› 6 black acrylic objects in Scape X® packaging • For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces • 6 black acrylic objects with IDs 7-12 • Can be attached to almost any object • Recognition without direct discharge • IDs can be changed in the user interface • Angle rotation precision < 1° • Ø 74,3 mm, h 20 mm ± 1 mm › We are happy to provide an offer for customised Scape X® Objects upon request. You can find more information on this article at https://www.ias-manuals.com/sxsv-002_7-12</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Shape Visible | IDs 7-12 Article Number: sxsv-002_7-12 Dimensions: ø: 74.3 mm, h: 20 mm ± 1 mm Weight: 103 g Material: Acrylic, black Features TUIO IDs: 7 - 12 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sxsv-002_1-6

Scape X® Shape Visible | IDs 1-6

<div class="techspecs">Scape X® Shape Visible | IDs 1-66 black acrylic objects in Scape X® packaging » For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » 6 black acrylic objects with IDs 1-6 » Can be attached to almost any object » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 74,3 mm, h 20 mm ± 1 mm » We are happy to provide an offer for customised Scape X® Objects upon request. You can find more information on this article at https://www.ias-manuals.com/sxsv-002_1-6</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Shape Visible | IDs 1-6 Article Number: sxsv-002_1-6 Dimensions: ø: 74.3 mm, h: 20 mm ± 1 mm Weight: 103 g Material: Acrylic, black Features TUIO IDs: 1 - 6 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sxsi-002_19-24

Scape X® Shape Invisible | IDs 19-24

<div class="techspecs">Scape X® Shape Invisible | IDs 19-246 transparent acrylic objects in Scape X® packaging » For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » 6 transparent acrylic objects with IDs 19-24 » Can be attached to almost any object » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 74,3 mm, h 20 mm ± 1 mm › We are happy to provide an offer for customised Scape X® Objects upon request. You can find more information on this article at https://www.ias-manuals.com/sxsi-002_19-24</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Shape Invisible | IDs 19-24 Article Number: sxsi-002_19-24 Dimensions: ø: 74.3 mm, h: 20 mm ± 1 mm Weight: 103 g Material: Acrylic, transparent Features TUIO IDs: 19 - 24 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sxsi-002_13-18

Scape X® Shape Invisible | IDs 13-18

<div class="techspecs">Scape X® Shape Invisible | IDs 13-186 transparent acrylic objects in Scape X® packaging » For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » 6 transparent acrylic objects with IDs 13-18 » Can be attached to almost any object » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 74,3 mm, h 20 mm ± 1 mm » We are happy to provide an offer for customised Scape X® Objects upon request. You can find more information on this article at https://www.ias-manuals.com/sxsi-002_13-18</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Shape Invisible | IDs 13-18 Article Number: sxsi-002_13-18 Dimensions: ø: 74.3 mm, h: 20 mm ± 1mm Weight: 103 g Material: Acrylic, transparent Features TUIO IDs: 13 - 18 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sxsi-002_7-12

Scape X® Shape Invisible | IDs 7-12

<div class="techspecs">Scape X® Shape Invisible | IDs 7-126 transparent acrylic objects in Scape X® packaging » For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » 6 transparent acrylic objects with IDs 7-12 » Can be attached to almost any object » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 74,3 mm, h 20 mm ± 1 mm » We are happy to provide an offer for customised Scape X® Objects upon request. You can find more information on this article at https://www.ias-manuals.com/sxsi-002_1-6</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Shape Invisible | IDs 7-12 Article Number: sxsi-002_7-12 Dimensions: ø: 74.3 mm, h: 20 mm ± 1 mm Weight: 103 g Material: Acrylic, transparent Features TUIO IDs: 7 - 12 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sxsi-002_1-6

Scape X® Shape Invisible | IDs 1-6

<div class="techspecs">Scape X® Shape Invisible | IDs 1-66 transparent acrylic objects in Scape X® packaging » For recognition on Scape® Tangible Displays 55" / 65" with Scape X® Engine and on Scape X®-certified third-party displays as well as Scape X® Surfaces » 6 transparent acrylic objects with IDs 1-6 » Can be attached to almost any object » Recognition without direct discharge » IDs can be changed in the user interface » Angle rotation precision < 1° » Ø 74,3 mm, h 20 mm ± 1 mm › We are happy to provide an offer for customised Scape X® Objects upon request. You can find more information on this article at https://www.ias-manuals.com/sxsi-002_1-6</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Shape Invisible | IDs 1-6 Article Number: sxsi-002_1-6 Dimensions: ø: 74.3 mm, h: 20 mm ± 1 mm Weight: 103 g Material: Acrylic, transparent Features TUIO IDs: 1 - 6 Rotational angular precision: < 1°, 0° adjustable Compatible with: Scape® Tangible Displays 55" / 65" with Scape X® Object Recognition Module Patent: U.S. Patent No. 12,026,328 </div></div></div>

sx-or

Scape X® Engine

<div class="techspecs">Scape X® Engine» Object Recognition Module for Scape X® Tangible Touch Displays » Supports all Scape X® objects via the TUIO interface » Flexibly adjustable: Object IDs can be changed and configured in the user interface » License & Activation: Scape X® Engine with a non-exclusive, perpetual right of use on a Scape® Tangible Touch Display You can find more information about this article at: ias-manuals.com/sx-or</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape X® Engine Article Number: sx-or Technology: Scape X® AI Recognition Unit Compatible with Scape X®: Shape Visible Shape Invisible Tags Visible Tags Invisible && Maginfy Visible && Maginfy Invisible Patents U.S. Patent No.: 12,026,328 U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div></div></div>

smo65-009-03

Scape® Movable 65 (Mini PC 5070)

<div class="techspecs">Scape® Movable 65 (Mini PC 5070)» Elegant high end multitouch table on lift frame Multitouch Display » Robust and precise capacitive touch technology » Super high-resolution 65" UHD/4K Display (3840x2160) PC » Integrated Mini PC, Windows 11 » Simple starting mechanism Lift frame black for 40" - 65" displays » Adjustable height » Adjustable display angle » On wheels » Bracket for Mini PC | black › The use of Object Recognition requires • Scape X® Engine Object Recognition Module • Scape X® Objects › We are happy to help! You can find more information on this article at https://www.ias-manuals.com/smo65-009-03</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape® Movable 65 (Mini PC 5070) Article Number: smo65-009-03 Specifications footprint (LxBxH) 0°: 152.5 x 89.6 cm height 0°: 95.0 - 160.1 cm footprint (LxBxH) 90°: 152.1 x 70.0 cm height 90°: 122.7 - 187.8 cm Weight: 127 kg material: steel, powder coated, deep black RAL9005 fine structure Features Display height / tilt angle adjustable: 65 cm, 0° - 90° integrated PC: Mini PC 5070 Rollers: 4 lockable rollers Electrical Specifications Operating voltage: 100-240 VAC 50/60Hz Power draw: max. 650 W Certifications: CE compliant </div><div class="techspecs-children"><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Scape® Tangible 65 Display Display diagonal: 64.5 inches Resolution: 3840 x 2160 (UHD) @60 Hz Format: 16:9 Brightness (Panel): 700 cd/m² Contrast (Panel): 4000:1 Backlight: LED Viewing angle: 178° / 178° Color gamut: 16.7 million Latency (on/off): 8 ms Backlight – lifetime: 50,000 h Pixel class: ISO 9241-307 (Pixel Error Class II) Operational period: 24/7 Max. ambient humidity Operation: 10 ~ 90% (not condensing) Max. ambient humidity Storage: 10 ~ 90% (not condensing) Max. ambient temperature Operation: 0 ~ 35 °C / 32 ~ 95 °F Max. ambient humidity Storage: -20 ~ 60 °C / -4 ~ 140 °F Dimensions (W x H x D): 1521,5 x 896,4 x 97 mm Weight: 72 kg Mounting: VESA 400x400 mm, 600x400 mm, 800x400 mm Max. tipping angle: 0° - 180° Panel orientation: Landscape / Portrait / Flat (table) Air flow cooling: 0.5 m³ / min Material: steel, powder-coated, matt black Touch controller Sensor: Projective Capacitive (PCAP) - Silver Nanowire USB Touch: 80 touches TUIO Touch: >100 touches Interfaces Touch: HID USB / TUIO 1.1 / 2.0 Video: 2x HDMI 2.0 / 1x HDMI 1.4 / 1x DisplayPort 1.4 Electrical specifications Operating voltage: 100 – 240 VAC 50/60Hz Power draw: 230 W Certifications: CE, RoHS, FCC Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div></div></div><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Mini-PC 5070 Specifications Processor: Intel Core Ultra 265 20-core up to 5.3 GHz RAM: 16 GB DDR5 (Dual Channel)) Hard drive: 250 GB SSD M.2 Graphics Card: NVIDIA Geforce RTX 5070 12GB GDDR6 Sound: Onboard 8 Channel Digital Audio via HDMI Mic/Speaker output Ports Display: 1x HDMI 2.1 / 3x DisplayPort 2.1b Network: WIFI 7 / 1x Killer 5 Gbps LAN / 1x Gigabit LAN / Bluetooth 5.4 Connectivity: 3x USB 3.2 Typ A, 4x USB 3.0 Typ A, 1x USB 3.4 Typ C, 1x Thunderbolt 4 Other Dimensions (LxWxH): 265.5 x 126 x 249 mm Power Supply: internal power supply unit Operating voltage: 100 – 240 VAC Power draw: 500 W Operating System: Windows 11 Professional Note: not suitable for 24/7 operation </div></div></div></div></div></div>

smo55-008-03

Scape® Movable 55 (Mini PC 5070)

<div class="techspecs">Scape® Movable 55 (Mini PC 5070)Scape® Movable 55 » Elegant high-end multitouch table on lift frame Multitouch Display » Robust and precise capacitive touch technology » Super high-resolution 55" UHD/4K Display (3840x2160) PC » Integrated Mini PC, Windows 11 » Simple starting mechanism Lift frame black for 40" - 65" displays » Adjustable height » Adjustable display angle » On wheels » Bracket for Mini-PC | black The use of Scape X® objects also requires » the Scape X® Engine or the Scape X® Module » We are happy to advise you! You can find more information on this article at https://www.ias-manuals.com/smo55-008-03</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape® Movable 55 (Mini PC 5070) Article Number: smo55-008-03 Specifications footprint (LxBxH) 0°: 127.4 x 78.6 cm height 0°: 91.1 - 155.8 cm footprint (LxBxH) 90°: 127.4 x 70.0 cm height 90°: 115.1 - 180.2 cm Weight: 104 kg material: steel, powder coated, deep black RAL9005 fine structure Features Display height / tilt angle adjustable: 65 cm, 0° - 90° integrated PC: Mini-PC 5070 Rollers: 4 lockable rollers Electrical Specifications Operating voltage: 100-240 VAC 50/60Hz Power draw: max. 650 W Certifications: CE compliant </div><div class="techspecs-children"><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Scape® Tangible 55 Display Display diagonal: 54.6 inches Resolution: 3840 x 2160 (UHD) @60 Hz Format: 16:9 Brightness (Panel): 700 cd/m² Contrast (Panel): 4000:1 Backlight: LED Viewing angle: 178° / 178° Color gamut: 16.7 Million Latency (on/off): 8.5 ms Backlight – lifetime: 50,000 h Pixel class: ISO 9241-307 (Pixel Error Class II) Operational period: 24/7 Max. ambient humidity Operation: 10 ~ 90% (not condensing) Max. ambient humidity Storage: 10 ~ 90% (not condensing) Max. ambient temperature Operation: 0 ~ 35 °C / 32 ~ 95 °F Max. ambient humidity Storage: -20 ~ 60 °C / -4 ~ 140 °F Dimensions (W x H x D): 1274 x 744 x 79.2 mm Weight: 49kg Mounting: VESA 400x400 mm, 600x400 mm, 800x400 mm Max. tipping angle: 0° - 180° Panel orientation: Landscape / Portrait / Flat (table) Air flow cooling: 0.5 m³ / min Material: steel, powder-coated, matt black RAL 9005 Touch controller Sensor: Projective Capacitive (PCAP) - Silver Nanowire USB Touch: 80 touches TUIO Touch: >100 touches Interfaces Touch: HID USB / TUIO 1.1 / 2.0 Video: 2x HDMI 2.0 / 1x DisplayPort 1.4 / 1x HDMI 1.4 Electrical specifications Operating voltage: 100 – 240 VAC 50/60Hz Power draw: 160 W Certifications: CE, RoHS, FCC, BIS IS 13252(PART 1) Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div></div></div><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Mini-PC 5070 Specifications Processor: Intel Core Ultra 265 20-core up to 5.3 GHz RAM: 16 GB DDR5 (Dual Channel)) Hard drive: 250 GB SSD M.2 Graphics Card: NVIDIA Geforce RTX 5070 12GB GDDR6 Sound: Onboard 8 Channel Digital Audio via HDMI Mic/Speaker output Ports Display: 1x HDMI 2.1 / 3x DisplayPort 2.1b Network: WIFI 7 / 1x Killer 5 Gbps LAN / 1x Gigabit LAN / Bluetooth 5.4 Connectivity: 3x USB 3.2 Typ A, 4x USB 3.0 Typ A, 1x USB 3.4 Typ C, 1x Thunderbolt 4 Other Dimensions (LxWxH): 265.5 x 126 x 249 mm Power Supply: internal power supply unit Operating voltage: 100 – 240 VAC Power draw: 500 W Operating System: Windows 11 Professional Note: not suitable for 24/7 operation </div></div></div></div></div></div>

sla55-008

Scape® Lab 55

<div class="techspecs">Scape® Lab 55» High-end multitouch table on rollable steel frame Multitouch Display » Robust and precise capacitive touch technology » Super High Resolution 55" UHD / 4K Display (3840x2160) » P-Cap with 80 (USB) and >100 (TUIO) capacitive touch points Rollable Steel Frame with optional PC Holder » Steel frame for Scape® Tangible 55 » Steel Frame powder coated RAL 9017 traffic black » Mounting space for PC with max. 520 x 255 x 410 LxWxH in mm » 4 castor wheels (2 lockable) The use of Scape X® objects also requires » the Scape X® Engine or the Scape X® Module » We are happy to advise you! You can find more information on this article at https://www.ias-manuals.com/sla55-008</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape® Lab 55 Article Number: sla55-008 Dimensions (L x W x H): 128.0 x 75.2 x 92.0 cm Weight: 79 kg material: steel frame, powder coated, deep black RAL9005 fine structure Features mounting space for PC (L x W x H): 43.0 x 25.0 x 45.0 cm optional: integrated SilentPC + switchable 8-way socket outlet Rollers: 4 rollers (2 lockable) Electrical Specifications Operating voltage: 100 - 240 VAC 50/60Hz Power draw: max. 490 W Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div><div class="techspecs-children"><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Scape® Tangible 55 Display Display diagonal: 54.6 inches Resolution: 3840 x 2160 (UHD) @60 Hz Format: 16:9 Brightness (Panel): 700 cd/m² Contrast (Panel): 4000:1 Backlight: LED Viewing angle: 178° / 178° Color gamut: 16.7 Million Latency (on/off): 8.5 ms Backlight – lifetime: 50,000 h Pixel class: ISO 9241-307 (Pixel Error Class II) Operational period: 24/7 Max. ambient humidity Operation: 10 ~ 90% (not condensing) Max. ambient humidity Storage: 10 ~ 90% (not condensing) Max. ambient temperature Operation: 0 ~ 35 °C / 32 ~ 95 °F Max. ambient humidity Storage: -20 ~ 60 °C / -4 ~ 140 °F Dimensions (W x H x D): 1274 x 744 x 79.2 mm Weight: 49kg Mounting: VESA 400x400 mm, 600x400 mm, 800x400 mm Max. tipping angle: 0° - 180° Panel orientation: Landscape / Portrait / Flat (table) Air flow cooling: 0.5 m³ / min Material: steel, powder-coated, matt black RAL 9005 Touch controller Sensor: Projective Capacitive (PCAP) - Silver Nanowire USB Touch: 80 touches TUIO Touch: >100 touches Interfaces Touch: HID USB / TUIO 1.1 / 2.0 Video: 2x HDMI 2.0 / 1x DisplayPort 1.4 / 1x HDMI 1.4 Electrical specifications Operating voltage: 100 – 240 VAC 50/60Hz Power draw: 160 W Certifications: CE, RoHS, FCC, BIS IS 13252(PART 1) Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div></div></div></div></div></div>

sla65-009

Scape® Lab 65

<div class="techspecs">Scape® Lab 65» High-end multitouch table on rollable steel frame Multitouch Display » Robust and precise capacitive touch technology » Super high-resolution 65" UHD / 4K Display (3840x2160) » P-Cap with 80 (USB) and >100 (TUIO) capacitive touch points Rollable Steel Frame with optional PC Holder » Steel frame for Scape® Tangible 65 » Steel Frame powder coated RAL 9017 traffic black » Mounting space for PC with max. 520 x 255 x 410 LxWxH in mm » 4 castor wheels (2 lockable) The use of Scape X® objects also requires » the Scape X® Engine or the Scape X® Module » We are happy to advise you! You can find more information on this article at https://www.ias-manuals.com/sla65-009</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape® Lab 65 Article Number: sla65-009 Dimensions (L x W x H): 152.8 x 90.3 x 92.0 cm Weight: 100 kg material: steel frame, powder coated, deep black RAL9005 fine structure Features mounting space for PC (L x W x H): 43.0 x 25.0 x 45.0 cm optional: integrated SilentPC + switchable 8-way socket outlet Rollers: 4 rollers (2 lockable) Electrical Specifications Operating voltage: 100 - 240 VAC 50/60Hz Power draw: max. 560 W Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div><div class="techspecs-children"><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Scape® Tangible 65 Display Display diagonal: 64.5 inches Resolution: 3840 x 2160 (UHD) @60 Hz Format: 16:9 Brightness (Panel): 700 cd/m² Contrast (Panel): 4000:1 Backlight: LED Viewing angle: 178° / 178° Color gamut: 16.7 million Latency (on/off): 8 ms Backlight – lifetime: 50,000 h Pixel class: ISO 9241-307 (Pixel Error Class II) Operational period: 24/7 Max. ambient humidity Operation: 10 ~ 90% (not condensing) Max. ambient humidity Storage: 10 ~ 90% (not condensing) Max. ambient temperature Operation: 0 ~ 35 °C / 32 ~ 95 °F Max. ambient humidity Storage: -20 ~ 60 °C / -4 ~ 140 °F Dimensions (W x H x D): 1521,5 x 896,4 x 97 mm Weight: 72 kg Mounting: VESA 400x400 mm, 600x400 mm, 800x400 mm Max. tipping angle: 0° - 180° Panel orientation: Landscape / Portrait / Flat (table) Air flow cooling: 0.5 m³ / min Material: steel, powder-coated, matt black Touch controller Sensor: Projective Capacitive (PCAP) - Silver Nanowire USB Touch: 80 touches TUIO Touch: >100 touches Interfaces Touch: HID USB / TUIO 1.1 / 2.0 Video: 2x HDMI 2.0 / 1x HDMI 1.4 / 1x DisplayPort 1.4 Electrical specifications Operating voltage: 100 – 240 VAC 50/60Hz Power draw: 230 W Certifications: CE, RoHS, FCC Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div></div></div><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Tischgestell für Scape® Lab 65 | ab sla65-004 </div></div></div></div></div></div>

spr65SL-009-03

Scape® Pro 65 SL | storage possibility on one side

<div class="techspecs">Scape® Pro 65 SL | storage possibility on one sideScape® Pro 65, storage possibility on one side » Elegant high end multitouch table with stainless steel legs » with storage possibility for objects on one side Multitouch Display » Robust and precise capacitive touch technology » Super high-resolution 65" UHD/4K Display (3840x2160) » >100 capacitive touch points PC » Integrated Silent PC, Windows 11 » Simple starting mechanism Table » Corian white, stainless steel, aluminium The use of Scape X® objects also requires » the Scape X® Engine or the Scape X® Module » We are happy to advise you! You can find more information on this article at https://www.ias-manuals.com/spr65SL-009-03</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape® Pro 65 SL | storage possibility on one side Article Number: spr65SL-009-03 Specifications Dimensions (L x W x H): 182.8 x 92.2 x 92.0 cm Weight: 140 kg Material frame: Corian, Glacier White Material legs: Stainless steel, brushed, K240 Integrated PC: Silent PC 5060 Electrical Specifications Operating voltage: 100 - 240 VAC 50/60Hz Power draw: max. 650 W Certifications: CE certified Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div><div class="techspecs-children"><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Scape® Tangible 65 Display Display diagonal: 64.5 inches Resolution: 3840 x 2160 (UHD) @60 Hz Format: 16:9 Brightness (Panel): 700 cd/m² Contrast (Panel): 4000:1 Backlight: LED Viewing angle: 178° / 178° Color gamut: 16.7 million Latency (on/off): 8 ms Backlight – lifetime: 50,000 h Pixel class: ISO 9241-307 (Pixel Error Class II) Operational period: 24/7 Max. ambient humidity Operation: 10 ~ 90% (not condensing) Max. ambient humidity Storage: 10 ~ 90% (not condensing) Max. ambient temperature Operation: 0 ~ 35 °C / 32 ~ 95 °F Max. ambient humidity Storage: -20 ~ 60 °C / -4 ~ 140 °F Dimensions (W x H x D): 1521,5 x 896,4 x 97 mm Weight: 72 kg Mounting: VESA 400x400 mm, 600x400 mm, 800x400 mm Max. tipping angle: 0° - 180° Panel orientation: Landscape / Portrait / Flat (table) Air flow cooling: 0.5 m³ / min Material: steel, powder-coated, matt black Touch controller Sensor: Projective Capacitive (PCAP) - Silver Nanowire USB Touch: 80 touches TUIO Touch: >100 touches Interfaces Touch: HID USB / TUIO 1.1 / 2.0 Video: 2x HDMI 2.0 / 1x HDMI 1.4 / 1x DisplayPort 1.4 Electrical specifications Operating voltage: 100 – 240 VAC 50/60Hz Power draw: 230 W Certifications: CE, RoHS, FCC Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div></div></div><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Silent PC 5060 Specifications Processor: Intel Core Ultra 7-255HX 20-core 2,4 - 5,2 GHz RAM: 16 GB DDR5 (Dual Channel) Hard drive: 250 GB SSD M.2 Graphics Card: NVIDIA Geforce RTX 5060Ti 16GB GDDR7 Sound: Onboard 8 Channel Digital Audio via HDMI Mic/Speaker output Ports Display: 1x HDMI 2.1b / 3x DisplayPort 2.1b Network: WIFI 7 / 2x 2.5 Gbps LAN / Bluetooth 5.4 USB: 5x USB 3.2 Gen2 Typ A, 2x Thunderbolt 4 Other Dimensions (LxWxH): 210 x 203 x 62.2 mm Power Supply: External power supply unit Operating voltage: 100 – 240 VAC Power draw: 330 W Operating System: Windows 11 Professional Note: not suitable for 24/7 operation </div></div></div></div></div></div>

spr65L-009-03

Scape® Pro 65 L | storage possibility on two sides

<div class="techspecs">Scape® Pro 65 L | storage possibility on two sidesScape® Pro 65 Long » Elegant high end Multitouch table with object recognition » Side shelves for objects Multitouch Display » Capacitive touch recognition » Super high-resolution 65“ UHD/4K Display (3840x2160) » 80 touchpoints capacitive PC » Integrate Silent-PC, Windows 11 » Easy starting mechanism Table » Corian white, stainless steel, aluminium The use of Scape X® objects also requires » the Scape X® Engine or the Scape X® Module » We are happy to advise you! You can find more information on this article at https://www.ias-manuals.com/spr65L-009-03</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape® Pro 65 L | storage possibility on two sides Article Number: spr65L-009-03 Specifications Dimensions (L x W x H): 215.0 x 92.2 x 92.0 cm Weight: 154 kg Material frame: Corian, Glacier White Material legs: Stainless steel, brushed, K240 Integrated PC: Silent PC 5060 Electrical Specifications Operating voltage: 100 - 240 VAC 50/60Hz Power draw: max. 650 W Certifications: CE certified Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div><div class="techspecs-children"><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Scape® Tangible 65 Display Display diagonal: 64.5 inches Resolution: 3840 x 2160 (UHD) @60 Hz Format: 16:9 Brightness (Panel): 700 cd/m² Contrast (Panel): 4000:1 Backlight: LED Viewing angle: 178° / 178° Color gamut: 16.7 million Latency (on/off): 8 ms Backlight – lifetime: 50,000 h Pixel class: ISO 9241-307 (Pixel Error Class II) Operational period: 24/7 Max. ambient humidity Operation: 10 ~ 90% (not condensing) Max. ambient humidity Storage: 10 ~ 90% (not condensing) Max. ambient temperature Operation: 0 ~ 35 °C / 32 ~ 95 °F Max. ambient humidity Storage: -20 ~ 60 °C / -4 ~ 140 °F Dimensions (W x H x D): 1521,5 x 896,4 x 97 mm Weight: 72 kg Mounting: VESA 400x400 mm, 600x400 mm, 800x400 mm Max. tipping angle: 0° - 180° Panel orientation: Landscape / Portrait / Flat (table) Air flow cooling: 0.5 m³ / min Material: steel, powder-coated, matt black Touch controller Sensor: Projective Capacitive (PCAP) - Silver Nanowire USB Touch: 80 touches TUIO Touch: >100 touches Interfaces Touch: HID USB / TUIO 1.1 / 2.0 Video: 2x HDMI 2.0 / 1x HDMI 1.4 / 1x DisplayPort 1.4 Electrical specifications Operating voltage: 100 – 240 VAC 50/60Hz Power draw: 230 W Certifications: CE, RoHS, FCC Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div></div></div><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Silent PC 5060 Specifications Processor: Intel Core Ultra 7-255HX 20-core 2,4 - 5,2 GHz RAM: 16 GB DDR5 (Dual Channel) Hard drive: 250 GB SSD M.2 Graphics Card: NVIDIA Geforce RTX 5060Ti 16GB GDDR7 Sound: Onboard 8 Channel Digital Audio via HDMI Mic/Speaker output Ports Display: 1x HDMI 2.1b / 3x DisplayPort 2.1b Network: WIFI 7 / 2x 2.5 Gbps LAN / Bluetooth 5.4 USB: 5x USB 3.2 Gen2 Typ A, 2x Thunderbolt 4 Other Dimensions (LxWxH): 210 x 203 x 62.2 mm Power Supply: External power supply unit Operating voltage: 100 – 240 VAC Power draw: 330 W Operating System: Windows 11 Professional Note: not suitable for 24/7 operation </div></div></div></div></div></div>

spr65-009-03

Scape® Pro 65

<div class="techspecs">Scape® Pro 65» Elegant high end multitouch table with stainless steel legs Multitouch Display » Robust and precise capacitive touch technology » Super high-resolution 65" UHD/4K Display (3840x2160) » 80 capacitive touch points PC » Integrated Silent PC, Windows 11 » Simple starting mechanism Table » Corian white, stainless steel, aluminium The use of Scape X® objects also requires » the Scape X® Engine or the Scape X® Module » We are happy to advise you! You can find more information on this article at https://www.ias-manuals.com/spr65-009-03</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape® Pro 65 Article Number: spr65-009-03 Specifications Dimensions (L x W x H): 154.7 x 92.2 x 92.0 cm Weight: 126 kg Material frame: Corian, Glacier White Material legs: Stainless steel, brushed, K240 Integrated PC: Silent PC 5060 Electrical Specifications Operating voltage: 100 - 240 VAC 50/60Hz Power draw: max. 650 W Certification: CE certified Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div><div class="techspecs-children"><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Scape® Tangible 65 Display Display diagonal: 64.5 inches Resolution: 3840 x 2160 (UHD) @60 Hz Format: 16:9 Brightness (Panel): 700 cd/m² Contrast (Panel): 4000:1 Backlight: LED Viewing angle: 178° / 178° Color gamut: 16.7 million Latency (on/off): 8 ms Backlight – lifetime: 50,000 h Pixel class: ISO 9241-307 (Pixel Error Class II) Operational period: 24/7 Max. ambient humidity Operation: 10 ~ 90% (not condensing) Max. ambient humidity Storage: 10 ~ 90% (not condensing) Max. ambient temperature Operation: 0 ~ 35 °C / 32 ~ 95 °F Max. ambient humidity Storage: -20 ~ 60 °C / -4 ~ 140 °F Dimensions (W x H x D): 1521,5 x 896,4 x 97 mm Weight: 72 kg Mounting: VESA 400x400 mm, 600x400 mm, 800x400 mm Max. tipping angle: 0° - 180° Panel orientation: Landscape / Portrait / Flat (table) Air flow cooling: 0.5 m³ / min Material: steel, powder-coated, matt black Touch controller Sensor: Projective Capacitive (PCAP) - Silver Nanowire USB Touch: 80 touches TUIO Touch: >100 touches Interfaces Touch: HID USB / TUIO 1.1 / 2.0 Video: 2x HDMI 2.0 / 1x HDMI 1.4 / 1x DisplayPort 1.4 Electrical specifications Operating voltage: 100 – 240 VAC 50/60Hz Power draw: 230 W Certifications: CE, RoHS, FCC Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div></div></div><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Silent PC 5060 Specifications Processor: Intel Core Ultra 7-255HX 20-core 2,4 - 5,2 GHz RAM: 16 GB DDR5 (Dual Channel) Hard drive: 250 GB SSD M.2 Graphics Card: NVIDIA Geforce RTX 5060Ti 16GB GDDR7 Sound: Onboard 8 Channel Digital Audio via HDMI Mic/Speaker output Ports Display: 1x HDMI 2.1b / 3x DisplayPort 2.1b Network: WIFI 7 / 2x 2.5 Gbps LAN / Bluetooth 5.4 USB: 5x USB 3.2 Gen2 Typ A, 2x Thunderbolt 4 Other Dimensions (LxWxH): 210 x 203 x 62.2 mm Power Supply: External power supply unit Operating voltage: 100 – 240 VAC Power draw: 330 W Operating System: Windows 11 Professional Note: not suitable for 24/7 operation </div></div></div></div></div></div>

spr55-008-03

Scape® Pro 55

<div class="techspecs">Scape® Pro 55» Elegant high end multitouch table with stainless steel legs Multitouch Display » Robust and precise capacitive touch technology » Super high-resolution 55" UHD/4K Display (3840x2160) » 80 capacitive touch points PC » Integrated Silent PC, Windows 11 » Simple starting mechanism Table » Corian white, stainless steel, aluminium The use of Scape X® objects also requires » the Scape X® Engine or the Scape X® Module » We are happy to advise you! You can find more information on this article at https://www.ias-manuals.com/spr55-008-03</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape® Pro 55 Article Number: spr55-008-03 Specifications Dimensions (L x W x H): 130.0 x 77.0 x 92.0 cm Weight: 99 kg Material frame: Corian, Glacier White Material legs: Stainless steel, brushed, K240 Integrated PC: Silent PC 5060 Electrical Specifications Operating voltage: 100 - 240 VAC 50/60Hz Power draw: max. 490 W Certifications: CE certified Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div><div class="techspecs-children"><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Scape® Tangible 55 Display Display diagonal: 54.6 inches Resolution: 3840 x 2160 (UHD) @60 Hz Format: 16:9 Brightness (Panel): 700 cd/m² Contrast (Panel): 4000:1 Backlight: LED Viewing angle: 178° / 178° Color gamut: 16.7 Million Latency (on/off): 8.5 ms Backlight – lifetime: 50,000 h Pixel class: ISO 9241-307 (Pixel Error Class II) Operational period: 24/7 Max. ambient humidity Operation: 10 ~ 90% (not condensing) Max. ambient humidity Storage: 10 ~ 90% (not condensing) Max. ambient temperature Operation: 0 ~ 35 °C / 32 ~ 95 °F Max. ambient humidity Storage: -20 ~ 60 °C / -4 ~ 140 °F Dimensions (W x H x D): 1274 x 744 x 79.2 mm Weight: 49kg Mounting: VESA 400x400 mm, 600x400 mm, 800x400 mm Max. tipping angle: 0° - 180° Panel orientation: Landscape / Portrait / Flat (table) Air flow cooling: 0.5 m³ / min Material: steel, powder-coated, matt black RAL 9005 Touch controller Sensor: Projective Capacitive (PCAP) - Silver Nanowire USB Touch: 80 touches TUIO Touch: >100 touches Interfaces Touch: HID USB / TUIO 1.1 / 2.0 Video: 2x HDMI 2.0 / 1x DisplayPort 1.4 / 1x HDMI 1.4 Electrical specifications Operating voltage: 100 – 240 VAC 50/60Hz Power draw: 160 W Certifications: CE, RoHS, FCC, BIS IS 13252(PART 1) Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div></div></div><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Silent PC 5060 Specifications Processor: Intel Core Ultra 7-255HX 20-core 2,4 - 5,2 GHz RAM: 16 GB DDR5 (Dual Channel) Hard drive: 250 GB SSD M.2 Graphics Card: NVIDIA Geforce RTX 5060Ti 16GB GDDR7 Sound: Onboard 8 Channel Digital Audio via HDMI Mic/Speaker output Ports Display: 1x HDMI 2.1b / 3x DisplayPort 2.1b Network: WIFI 7 / 2x 2.5 Gbps LAN / Bluetooth 5.4 USB: 5x USB 3.2 Gen2 Typ A, 2x Thunderbolt 4 Other Dimensions (LxWxH): 210 x 203 x 62.2 mm Power Supply: External power supply unit Operating voltage: 100 – 240 VAC Power draw: 330 W Operating System: Windows 11 Professional Note: not suitable for 24/7 operation </div></div></div></div></div></div>

spr55L-008-03

Scape® Pro 55 L | storage possibility on two sides

<div class="techspecs">Scape® Pro 55 L | storage possibility on two sides» Elegant high end multitouch table with stainless steel frame legs » with storage possibility for objects on two sides Multitouch Display » Robust and precise capacitive touch technology » Super high-resolution 55" UHD/4K Display (3840x2160) » 80 capacitive touch points PC » Integrated Silent PC, Windows 11 » Simple starting mechanism Table » Corian white, white frame legs, aluminium The use of Scape X® objects also requires » the Scape X® Engine or the Scape X® Module » We are happy to advise you! Mehr Informationen zu diesem Artikel finden Sie unter https://www.ias-manuals.com/spr55L-008-03</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape® Pro 55 L | storage possibility on two sides Article Number: spr55L-008-03 Specifications Dimensions (L x W x H): 168.6 x 77.0 x 92.0 cm Weight: 115 kg Material frame: Corian, Glacier White Material legs: Stainless steel, brushed, K240 Integrated PC: Silent PC 5060 Electrical Specifications Operating voltage: 100 - 240 VAC 50/60Hz Power draw: max. 490 W Certifications: CE certified Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div><div class="techspecs-children"><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Scape® Tangible 55 Display Display diagonal: 54.6 inches Resolution: 3840 x 2160 (UHD) @60 Hz Format: 16:9 Brightness (Panel): 700 cd/m² Contrast (Panel): 4000:1 Backlight: LED Viewing angle: 178° / 178° Color gamut: 16.7 Million Latency (on/off): 8.5 ms Backlight – lifetime: 50,000 h Pixel class: ISO 9241-307 (Pixel Error Class II) Operational period: 24/7 Max. ambient humidity Operation: 10 ~ 90% (not condensing) Max. ambient humidity Storage: 10 ~ 90% (not condensing) Max. ambient temperature Operation: 0 ~ 35 °C / 32 ~ 95 °F Max. ambient humidity Storage: -20 ~ 60 °C / -4 ~ 140 °F Dimensions (W x H x D): 1274 x 744 x 79.2 mm Weight: 49kg Mounting: VESA 400x400 mm, 600x400 mm, 800x400 mm Max. tipping angle: 0° - 180° Panel orientation: Landscape / Portrait / Flat (table) Air flow cooling: 0.5 m³ / min Material: steel, powder-coated, matt black RAL 9005 Touch controller Sensor: Projective Capacitive (PCAP) - Silver Nanowire USB Touch: 80 touches TUIO Touch: >100 touches Interfaces Touch: HID USB / TUIO 1.1 / 2.0 Video: 2x HDMI 2.0 / 1x DisplayPort 1.4 / 1x HDMI 1.4 Electrical specifications Operating voltage: 100 – 240 VAC 50/60Hz Power draw: 160 W Certifications: CE, RoHS, FCC, BIS IS 13252(PART 1) Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div></div></div><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Silent PC 5060 Specifications Processor: Intel Core Ultra 7-255HX 20-core 2,4 - 5,2 GHz RAM: 16 GB DDR5 (Dual Channel) Hard drive: 250 GB SSD M.2 Graphics Card: NVIDIA Geforce RTX 5060Ti 16GB GDDR7 Sound: Onboard 8 Channel Digital Audio via HDMI Mic/Speaker output Ports Display: 1x HDMI 2.1b / 3x DisplayPort 2.1b Network: WIFI 7 / 2x 2.5 Gbps LAN / Bluetooth 5.4 USB: 5x USB 3.2 Gen2 Typ A, 2x Thunderbolt 4 Other Dimensions (LxWxH): 210 x 203 x 62.2 mm Power Supply: External power supply unit Operating voltage: 100 – 240 VAC Power draw: 330 W Operating System: Windows 11 Professional Note: not suitable for 24/7 operation </div></div></div></div></div></div>

spr55SL-008-03

Scape® Pro 55 SL | storage possibility on one side

<div class="techspecs">Scape® Pro 55 SL | storage possibility on one side» Elegant high end multitouch table with stainless steel frame legs » with storage possibility for objects on one side Multitouch Display » Robust and precise capacitive touch technology » Super high-resolution 55" UHD/4K Display (3840x2160) » 80 capacitive touch points PC » Integrated Silent PC, Windows 11 » Simple starting mechanism Table » Corian white, stainless steel frame legs, aluminium The use of Scape X® objects also requires » the Scape X® Engine or the Scape X® Module » We are happy to advise you! You can find more information on this article at https://www.ias-manuals.com/spr55SL-008-03</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape® Pro 55 SL | storage possibility on one side Article Number: spr55SL-008-03 Specifications Dimensions (L x W x H): 152.9 x 77.0 x 92.0 cm Weight: 106 kg Material frame: Corian, Glacier White Material legs: Stainless steel, brushed, K240 Integrated PC: Silent PC 5060 Electrical Specifications Operating voltage: 100 - 240 VAC 50/60Hz Power draw: max. 490 W Certifications: CE certified Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div><div class="techspecs-children"><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Scape® Tangible 55 Display Display diagonal: 54.6 inches Resolution: 3840 x 2160 (UHD) @60 Hz Format: 16:9 Brightness (Panel): 700 cd/m² Contrast (Panel): 4000:1 Backlight: LED Viewing angle: 178° / 178° Color gamut: 16.7 Million Latency (on/off): 8.5 ms Backlight – lifetime: 50,000 h Pixel class: ISO 9241-307 (Pixel Error Class II) Operational period: 24/7 Max. ambient humidity Operation: 10 ~ 90% (not condensing) Max. ambient humidity Storage: 10 ~ 90% (not condensing) Max. ambient temperature Operation: 0 ~ 35 °C / 32 ~ 95 °F Max. ambient humidity Storage: -20 ~ 60 °C / -4 ~ 140 °F Dimensions (W x H x D): 1274 x 744 x 79.2 mm Weight: 49kg Mounting: VESA 400x400 mm, 600x400 mm, 800x400 mm Max. tipping angle: 0° - 180° Panel orientation: Landscape / Portrait / Flat (table) Air flow cooling: 0.5 m³ / min Material: steel, powder-coated, matt black RAL 9005 Touch controller Sensor: Projective Capacitive (PCAP) - Silver Nanowire USB Touch: 80 touches TUIO Touch: >100 touches Interfaces Touch: HID USB / TUIO 1.1 / 2.0 Video: 2x HDMI 2.0 / 1x DisplayPort 1.4 / 1x HDMI 1.4 Electrical specifications Operating voltage: 100 – 240 VAC 50/60Hz Power draw: 160 W Certifications: CE, RoHS, FCC, BIS IS 13252(PART 1) Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div></div></div><div class="techspecs-child"><div class="techspecs"><div class="techspecs-content">Silent PC 5060 Specifications Processor: Intel Core Ultra 7-255HX 20-core 2,4 - 5,2 GHz RAM: 16 GB DDR5 (Dual Channel) Hard drive: 250 GB SSD M.2 Graphics Card: NVIDIA Geforce RTX 5060Ti 16GB GDDR7 Sound: Onboard 8 Channel Digital Audio via HDMI Mic/Speaker output Ports Display: 1x HDMI 2.1b / 3x DisplayPort 2.1b Network: WIFI 7 / 2x 2.5 Gbps LAN / Bluetooth 5.4 USB: 5x USB 3.2 Gen2 Typ A, 2x Thunderbolt 4 Other Dimensions (LxWxH): 210 x 203 x 62.2 mm Power Supply: External power supply unit Operating voltage: 100 – 240 VAC Power draw: 330 W Operating System: Windows 11 Professional Note: not suitable for 24/7 operation </div></div></div></div></div></div>

st65-009

Scape® Tangible 65

<div class="techspecs">Scape® Tangible 65Multitouch Display » Super high-resolution and reactive 65" touch display » P-Cap with 80 (USB) and >100 (TUIO) capacitive touch points » Resolution 3840 x 2160 (UHD) @60Hz » Bright Panel with 700 Candela » Certified for horizontal and vertical use » Certified for 24/7 use » AI inside The use of Scape X® objects also requires » the Scape X® Engine or the Scape X® Module » We are happy to advise you! You can find more information on this article at https://www.ias-manuals.com/st65-009</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape® Tangible 65 Article Number: st65-009 Display Display diagonal: 64.5 inches Resolution: 3840 x 2160 (UHD) @60 Hz Format: 16:9 Brightness (Panel): 700 cd/m² Contrast (Panel): 4000:1 Backlight: LED Viewing angle: 178° / 178° Color gamut: 16.7 million Latency (on/off): 8 ms Backlight – lifetime: 50,000 h Pixel class: ISO 9241-307 (Pixel Error Class II) Operational period: 24/7 Max. ambient humidity Operation: 10 ~ 90% (not condensing) Max. ambient humidity Storage: 10 ~ 90% (not condensing) Max. ambient temperature Operation: 0 ~ 35 °C / 32 ~ 95 °F Max. ambient humidity Storage: -20 ~ 60 °C / -4 ~ 140 °F Dimensions (W x H x D): 1521,5 x 896,4 x 97 mm Weight: 72 kg Mounting: VESA 400x400 mm, 600x400 mm, 800x400 mm Max. tipping angle: 0° - 180° Panel orientation: Landscape / Portrait / Flat (table) Air flow cooling: 0.5 m³ / min Material: steel, powder-coated, matt black Touch controller Sensor: Projective Capacitive (PCAP) - Silver Nanowire USB Touch: 80 touches TUIO Touch: >100 touches Interfaces Touch: HID USB / TUIO 1.1 / 2.0 Video: 2x HDMI 2.0 / 1x HDMI 1.4 / 1x DisplayPort 1.4 Electrical specifications Operating voltage: 100 – 240 VAC 50/60Hz Power draw: 230 W Certifications: CE, RoHS, FCC Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div></div></div>

st55-008

Scape® Tangible 55

<div class="techspecs">Scape® Tangible 55Multitouch Display » Super high-resolution and reactive 55" touch display » P-Cap with 80 (USB) and >100 (TUIO) capacitive touch points » Resolution 3840 x 2160 (UHD) @60Hz » Bright Panel with 700 Candela » Certified for horizontal and vertical use » Certified for 24/7 use » AI inside The use of Scape X® objects also requires » the Scape X® Engine or the Scape X® Module » We are happy to advise you! You can find more information on this article at https://www.ias-manuals.com/st55-008</div>

<div class="techspecs-root"><div class="techspecs"><div class="techspecs-content">Scape® Tangible 55 Article Number: st55-008 Display Display diagonal: 54.6 inches Resolution: 3840 x 2160 (UHD) @60 Hz Format: 16:9 Brightness (Panel): 700 cd/m² Contrast (Panel): 4000:1 Backlight: LED Viewing angle: 178° / 178° Color gamut: 16.7 Million Latency (on/off): 8.5 ms Backlight – lifetime: 50,000 h Pixel class: ISO 9241-307 (Pixel Error Class II) Operational period: 24/7 Max. ambient humidity Operation: 10 ~ 90% (not condensing) Max. ambient humidity Storage: 10 ~ 90% (not condensing) Max. ambient temperature Operation: 0 ~ 35 °C / 32 ~ 95 °F Max. ambient humidity Storage: -20 ~ 60 °C / -4 ~ 140 °F Dimensions (W x H x D): 1274 x 744 x 79.2 mm Weight: 49kg Mounting: VESA 400x400 mm, 600x400 mm, 800x400 mm Max. tipping angle: 0° - 180° Panel orientation: Landscape / Portrait / Flat (table) Air flow cooling: 0.5 m³ / min Material: steel, powder-coated, matt black RAL 9005 Touch controller Sensor: Projective Capacitive (PCAP) - Silver Nanowire USB Touch: 80 touches TUIO Touch: >100 touches Interfaces Touch: HID USB / TUIO 1.1 / 2.0 Video: 2x HDMI 2.0 / 1x DisplayPort 1.4 / 1x HDMI 1.4 Electrical specifications Operating voltage: 100 – 240 VAC 50/60Hz Power draw: 160 W Certifications: CE, RoHS, FCC, BIS IS 13252(PART 1) Patents U.S. Patent No.: 11,320,947 Pat. Reg.: EP 3574398 (DE, FR, UK, PT) KR Patent No.: 10-2566520 JP Patent No.: 7237143 CN Patent No.: ZL 201880092584.6 </div></div></div>

Effortless Integration

1. Cabling

2. Configure Network Adapter

3. Activate License & Key

4. Calibrate

5. Enable Windows Touch via TUIO (optional)

6. Connect multiple displays

Configure Your

Scape X® Module

Future-Proof Your Display Technology

Our Technology in Action

Our Customers

FAQ

Other Products

Scape X® Engine

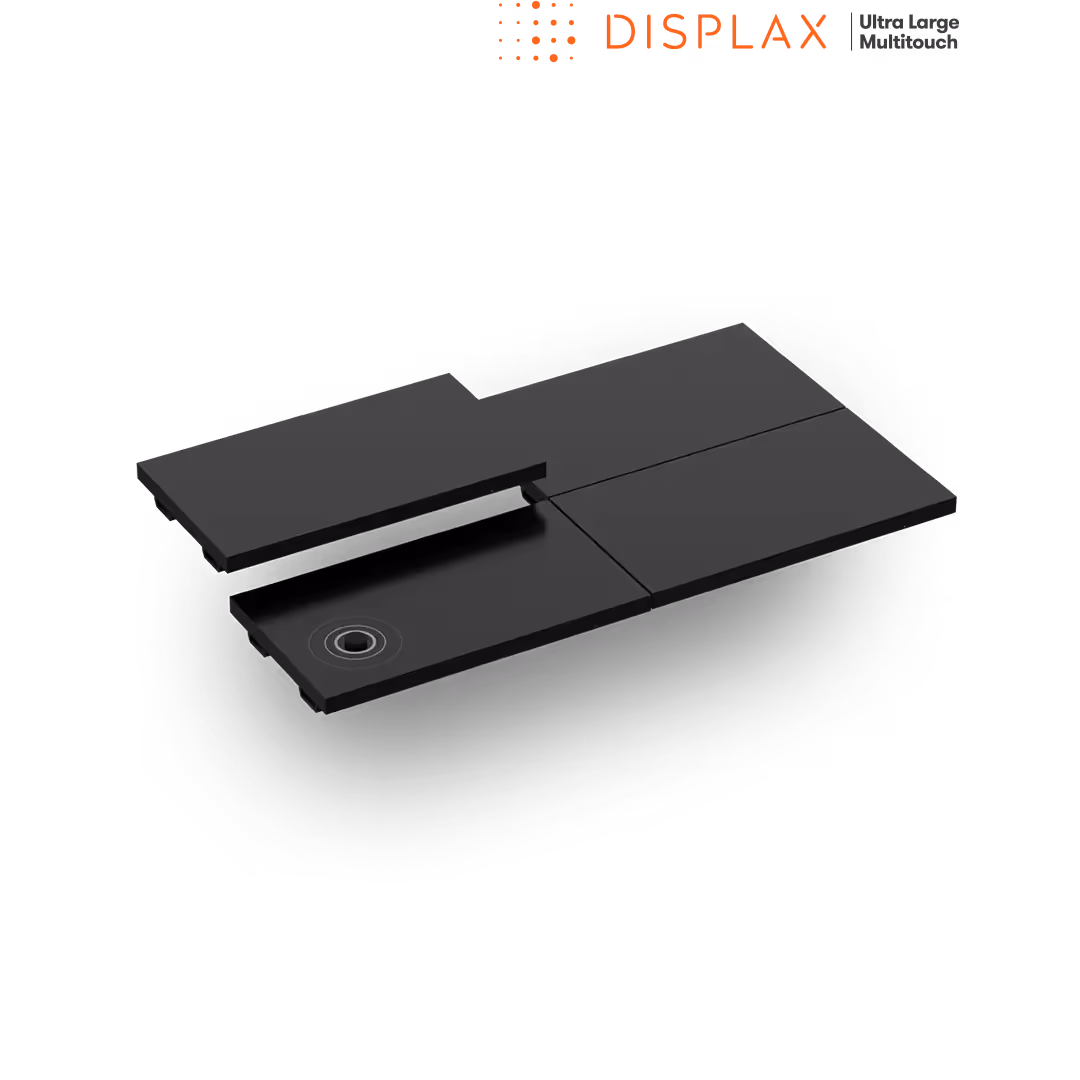

TILE PRO | Scape X®
